Product name:YBF Flow cooling tower

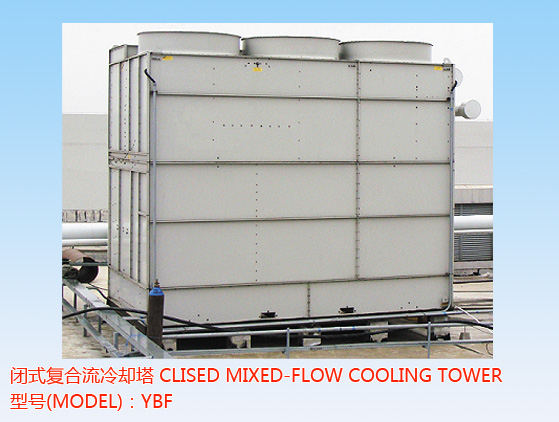

YBF Flow cooling tower

Product description:

If you interested in our products, Please send email at : huafeng.chen@wxyj88.com





YBF design and structural features:

YBF series of closed cooling tower made ​​of composite flow cooling, efficient dehydrator, drift rate is very low. Closed loop cooling fluid medium, impurities and ensure the purity of the medium. Circulation of water using soft water, no scaling, no clogging pipes. Small footprint, can be moved, placed, low maintenance costs.

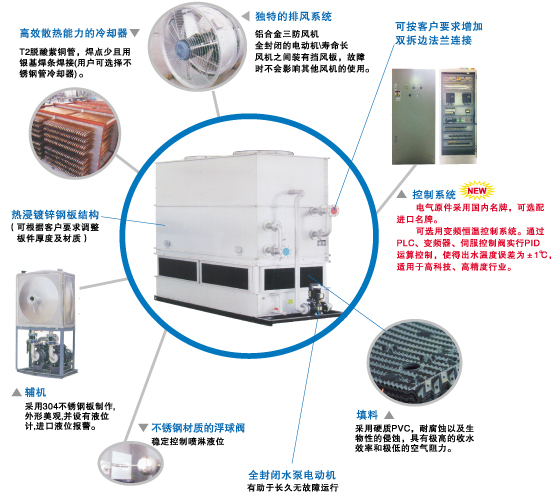

BF design and structural features

Technical parameters
Model Cooling water Host Access diameter Spray pump Fan Dimensions Host weight Operating weight
Power Water Power Airflow L W H
m3/h mm kw m3/h kw m3/h mm mm mm kg kg
YBF-8S 8 DN50 0.37 12 0.55 12000 1600 1450 2800 620 1070
YBF-10S 10 DN65 0.37 12 0.55×2 15000 1900 1700 2600 740 1850
YBF-15S 15 DN65 0.37 14 0.75×2 22000 1900 1700 2800 810 1930
YBF-20S 20 DN80 0.55 16 0.75×2 28000 2100 2000 2800 910 2450
YBF-30S 30 DN80 0.75 28 1.5×2 40000 2100 2000 2950 1020 2150
YBF-40S 40 DN100 1.1 45 1.5×2 54000 2600 2000 3030 1300 2810
YBF-50S 50 DN100 1.1 50 1.5×2 68000 2600 2200 3290 1480 3150
YBF-65S 65 DN100 1.5 55 2.2×2 86000 2750 2500 3300 1720 3930
YBF-80S 80 DN125 2.2 90 3.0×2 105000 3400 2500 3400 2380 5280
YBF-100S 100 DN125 3.0 105 2.2×3 130000 4200 2950 3500 2900 7100
YBF-125S 125 DN150 3.0 110 4.0×2 165000 4600 2900 3510 3390 7730
YBF-150S 150 DN150 4.0 150 3.0×3 200000 5100 3400 4240 3980 9750
YBF-175S 175 DN125×2   4.0 160 5.5×3 230000 4900 3200 4930 5420 10950
YBF-200S 200 DN250 5.5 200 5.5x3 240000 5600 3500 4500 5500 13000

Note: (1) design conditions: water temperature = 37 ℃, water temperature = 32 ℃, wet bulb temperature = 28 ℃, atmospheric pressure = 9.94 × 104Pa;
 (2) Sample Pictures and technical parameters for reference only, detailed parameters, please contact us. Can be customized according to customer demand non-standard products.
