Product name:YEC Evaporative condenser

YEC Evaporative condenser

Product description:

If you interested in our products, Please send email at : huafeng.chen@wxyj88.com


Evaporative condenser refrigeration, air conditioning system, the main heat exchange equipment, its working principle is: refrigeration, air conditioning system refrigerant compressor shoot high pressure superheated gas through the evaporative condenser condensate pipes, high-pressure high-temperature gaseous refrigerant discharge pipe outside of the spray water and air for heat exchange, the gas refrigerant from the upper portion of the inlet into the discharge tube gradually from top condenser is condensed into liquid refrigerant.

product composition:

Technical parameters:





Model



nominal heat emission conditions



axial fan



Dimensions



over size



circulating pump



weight



number of units



single power



single
            Airflow



mm



mm



flow



Power



transport



run



kw



Taiwan

kw

m3/h

A

B

H

J

water



sewage



overflow



intake



the liquid

m3/h

kw

kg

kg

YEC-430

430

1

4

65000

1820

2250

4285

340

DN25

DN50

DN50

φ76

φ57

50

1.1

3370

4300

YEC-475

475

1

4

65000

1920

2250

4285

340

DN25

DN50

DN50

φ76

φ57

56

2.2

3580

4500

YEC-495

495

1

5.5

71000

1920

2250

4285

340

DN25

DN50

DN50

φ76

φ57

56

2.2

3650

4600

YEC-550

550

1

4

63500

1920

3000

4285

340

DN25

DN50

DN50

φ89

φ76

100

2.2

4060

5100

YEC-595

595

1

5.5

78000

1920

3000

4285

340

DN25

DN50

DN50

φ89

φ76

100

2.2

4150

5200

YEC-670

670

1

5.5

78000

1920

3000

4285

340

DN25

DN50

DN50

φ89

φ76

100

2.2

4430

5500

YEC-700

700

1

5.5

78000

1920

3000

4285

340

DN25

DN50

DN50

φ89

φ76

100

2.2

4880

6200

YEC-735

735

1

7.5

87000

1920

3000

4285

340

DN25

DN50

DN50

φ108

φ89

100

2.2

4950

6300

YEC-900

900

2

5.5

71000

3570

2250

4285

340

DN25

DN50

DN50

φ108

φ89

100

2.2

5780

7500

YEC-960

960

2

5.5

71000

3570

2250

4285

340

DN25

DN50

DN50

φ108

φ89

112

4

6020

7800

YEC-1050

1050

2

5.5

71000

3570

2250

4285

340

DN25

DN50

DN50

φ108

φ89

112

4

6260

8100

YEC-1165

1165

2

4

65000

3690

2700

4285

340

DN25

DN50

DN50

φ108×2

φ108

130

5.5

6830

9500

YEC-1285

1285

2

5.5

78000

3690

2700

4285

340

DN25

DN50

DN50

φ108×2

φ108

130

5.5

6970

9700

YEC-1335

1335

2

7.5

87000

3690

2700

4285

340

DN25

DN50

DN50

φ108×2

φ108

130

5.5

7100

9800

YEC-1420

1420

2

5.5

78000

3760

3000

4285

340

DN25

DN50

DN50

φ108×2

φ108

130

5.5

7520

10200

YEC-1490

1490

2

7.5

87000

3760

3000

4285

340

DN25

DN50

DN50

φ108×2

φ108

130

5.5

7680

10300

YEC-1575

1575

3

4

65000

5600

2250

4100

340

DN25

DN50

DN50

φ108×2

φ89×2

182

7.5

7920

10500

YEC-1620

1620

3

5.5

71000

5600

2250

4100

340

DN25

DN50

DN50

φ108×2

φ89×2

182

7.5

8150

10600

YEC-1690

1690

3

7.5

79000

5600

2250

4100

340

DN25

DN50

DN50

φ108×2

φ89×2

182

7.5

8280

10700

YEC-1765

1765

3

7.5

79000

5600

2620

4100

340

DN25

DN50

DN50

φ108×2

φ89×2

182

7.5

9020

12600

YEC-1935

1935

3

5.5

71000

5600

2620

4100

340

DN25

DN50

DN50

φ108×2

φ89×2

182

7.5

9850

12900

YEC-2010

2010

3

7.5

87000

5600

3000

4100

340

DN25

DN50

DN50

φ108×2

φ89×2

182

7.5

10100

13100

YEC-2140

2140

3

5.5

78000

5600

3000

4100

340

DN25

DN50

DN50

φ108×2

φ89×2

182

7.5

10600

13500

YEC-2245

2245

3

7.5

87000

5600

3000

4100

340

DN25

DN50

DN50

φ108×2

φ89×2

182

7.5

10800

13900


Technical Note
1, the data in the table are for reference only;
2, in the table for the device Net operating weight plus the weight of refrigerant and the bottom of the water storage tray weight;
3, in the name of the table refers to the condition row heat condensing temperature Tk = 35 ℃, air inlet wet bulb temperature TS = 24 ℃ data;
4, water for electronic cleaning device configuration, users should note when ordering.

3. the appearance of the figure

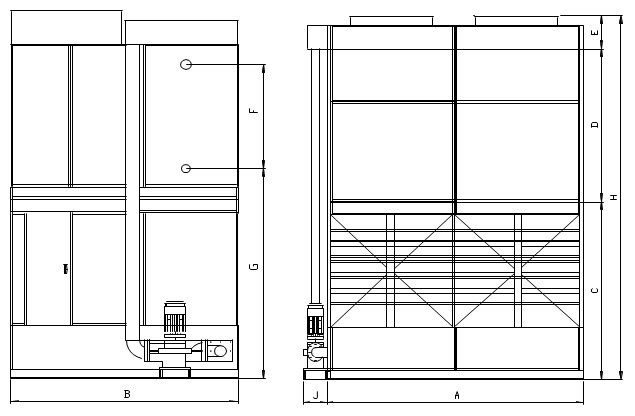

430-1490

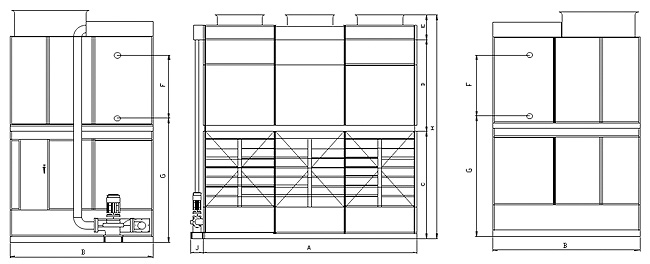

1575-2245
